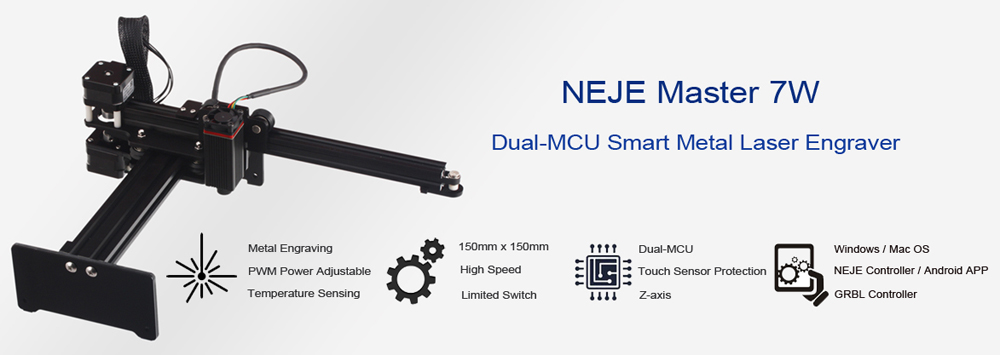

NEJE MASTER 7W Smart Laser Engraver DIY Laser Engraving Machine 450nm Blue Laser Deep Carving Desktop Logo Picture Printer Aluminum Oxide Metal Engraving

NEJE MASTER 7W Smart Laser Engraver DIY Laser Engraving Machine 450nm Blue Laser Deep Carving Desktop Logo Picture Printer Aluminum Oxide Metal Engraving

Regular Price: £188.94

QTY:
  • Free UK Shipping Available
  • Shipped from USA Warehouse
  • Delivered in 3-21 Working Days

NEJE MASTER 7W Smart Laser Engraver DIY Laser Engraving Machine 450nm Blue Laser Deep Carving Desktop Logo Picture Printer Aluminum Oxide Metal Engraving

NEJE Laser Engraving Machine




NEJE 3500mW Laser Engraver



Please click that: ID: 1448860
NEJE 20W Laser Engraver Please click that: ID: 1582758
If you would like to buy NEJE laser module replacement, you can click that: ID: 1592200

Description:
- Master engraving machine is a portable engraving machine with simple installation, safety and easy operation.
- It has built-in sensor accelerometer. When the machine tilts, it will automatically stop laser work and protect from laser damage.

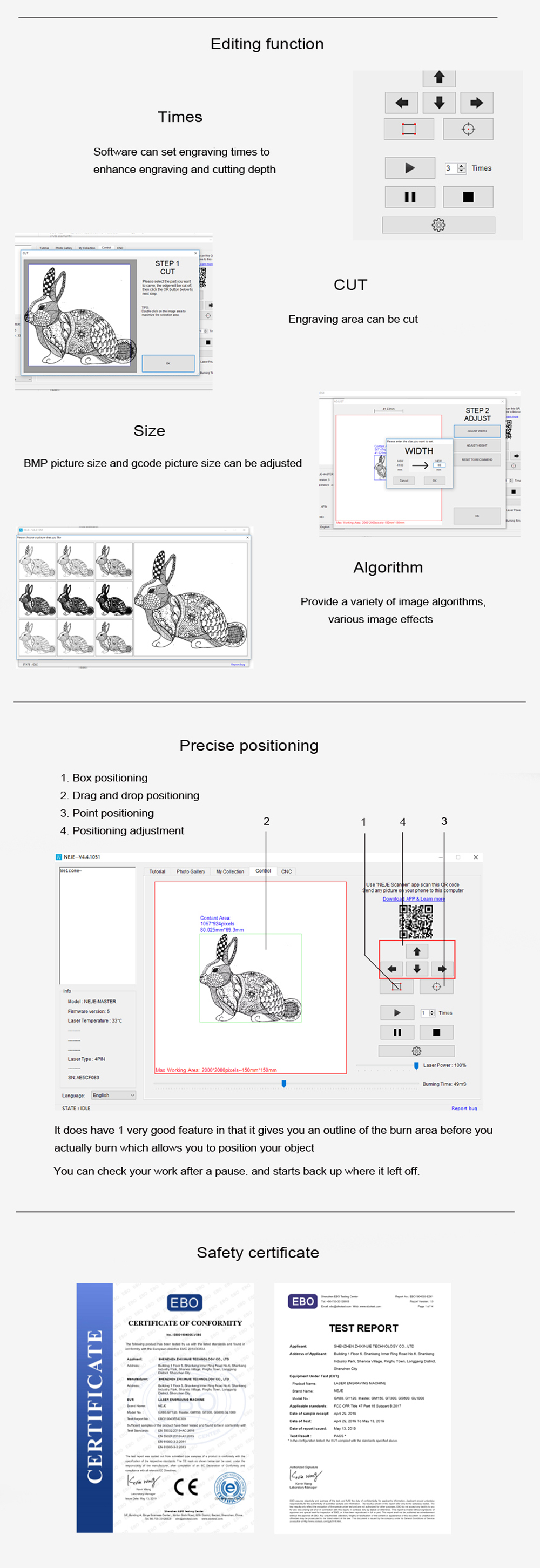

- At the same time, it supports NEJE control software and GRBL software, which can not only enjoy the simple portability of NEJE software, but also support the operation fun of GRBL open source software;
- It supports the dynamic control laser module developed by Neje, which can support PWM power regulation, low light brightness regulation, laser temperature induction protection; it also supports different power lasers.
- The master 7w specializes in metal engraving and deep wood engraving and cutting.

Application:
1. Depth of engraving (0.5-3mm wood), thickness of cutting(2mm wood).
2. It supports metal engraving including alumina oxide, iron oxide, and other non-reflective materials.
Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, copper, etc.
3. It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser.
4. Can not work on the stainless steel / glass / alloy / some reflective materials.

Features:
* Built-in sensor protectiong:

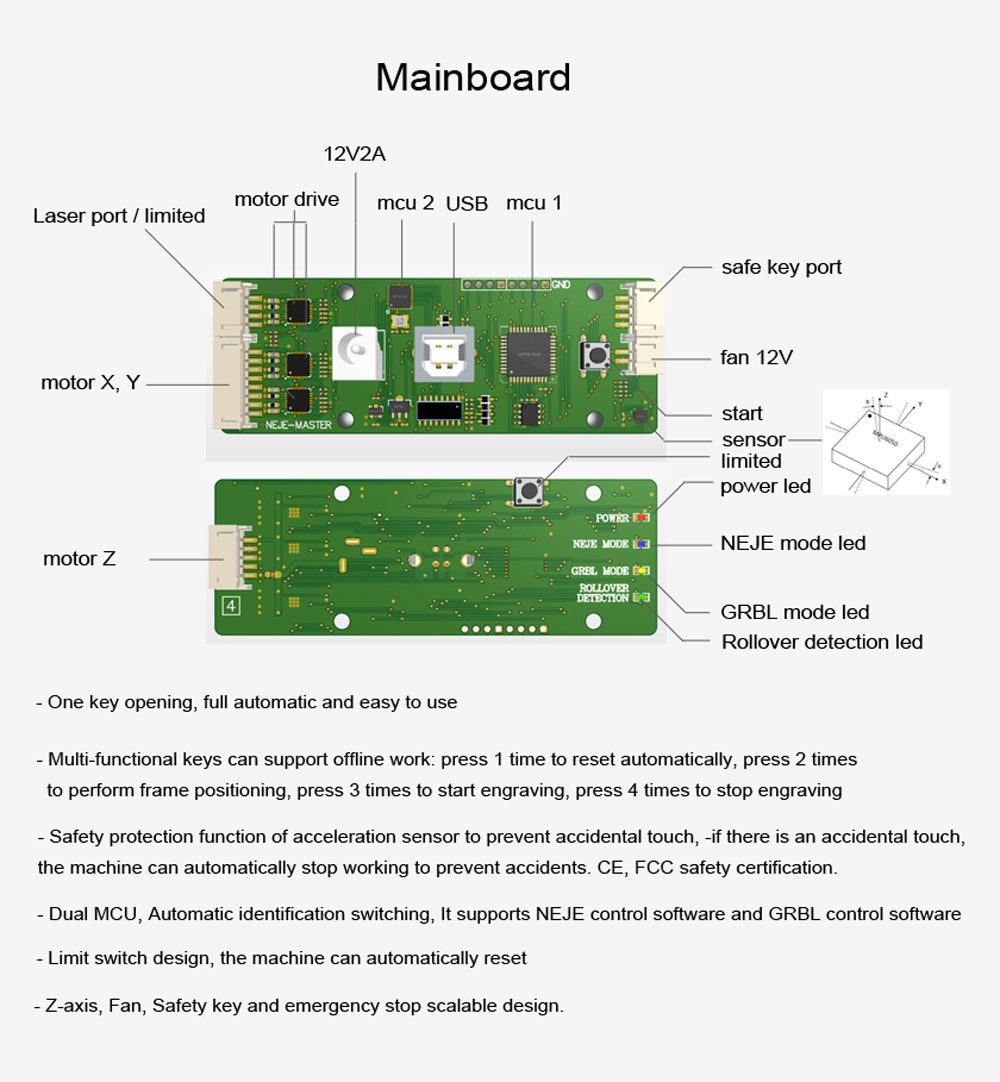

Daul MCU: One MCU for Suport NEJE Controller(Windows & MAC), The Other for GRBL Controller
OFF-Line Working:
150mm x 150 mm Working eara, 160mm x 160mm in GRBL Mode:
Limited Switch design:
Compatible with laser modules(3500, 7W, 20W).
Z-axis,fan,safe Key button Support.
PWM Laser Power Adjustment.
Cloud Gallery Service.
image and text Edit.
Easy Position.
Repeat engraving.
Support BMP,NC(G-code),DXF(CAD), etc... files.
NEJE Scanner(photo share).

Specification:
Material: Acrylic + PP + Aluminum
Laser Power: 7W ( Laser input:12v0.75A )
Laser Wave Length: 450nm
Image Format:.nc .dxf .bmp .jpg .png etc..
Image Size: 2000 * 2000 pixels / 0.075mm point distance
Support System: WinXP / Win7 / Win8 / XP / Win10, Mac , android APP(neje scanner)
Machine Supply Voltage: 12V2A

Items can be carved including:
alumina oxide, iron oxide, mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc. Please take notice that the laser head is easily-consumed products, so we promise to supply again within three month if the laser head is Inhuman damage.so if you laser head is Inhuman damage, please do not give negative comment thanks for your support.

Package List:
1 * Engraving Machine
1 * Protective Glasses
1 * USB Cable
1 * Power Adapter
1 * Wrench
1 * Whiteboard Marker
2 * Wood Block
5 * Paper
1 * Brush
1 * Metal tag

Note:
1.When the machine is working, it is recommended not to look directly at the laser head, and not to operate the laser head directly by hand
2.Laser diode is a sensitive component, pay attention to prevent electrostatic damage (product includes electrostatic protection design, but there is a certain probability of damage)
3.The Laser Module warranty time is 1 yesr
4.The controller board warranty time is 3 yesr
5. that the manual and CD-ROM are not included, software download and use help by neje wiki service
