MUSTOOL MT8206 2 in 1 Intelligent  Digital Oscilloscope Multimeter with Analog Bar Graph

MUSTOOL MT8206 2 in 1 Intelligent Digital Oscilloscope Multimeter with Analog Bar Graph

Regular Price: £79.55

QTY:
  • Free UK Shipping Available
  • Shipped from ES Warehouse
  • Delivered in 3-21 Working Days

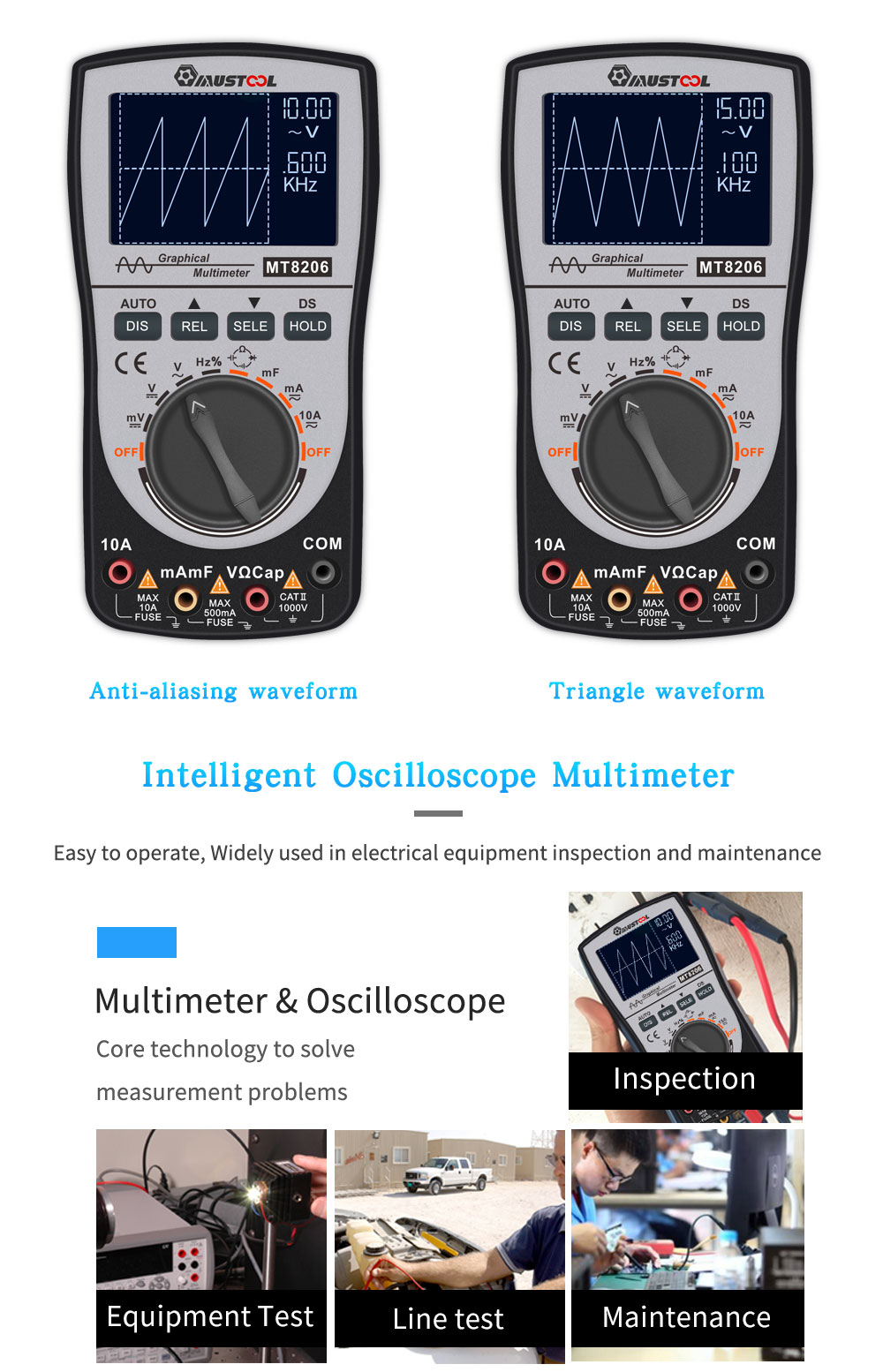

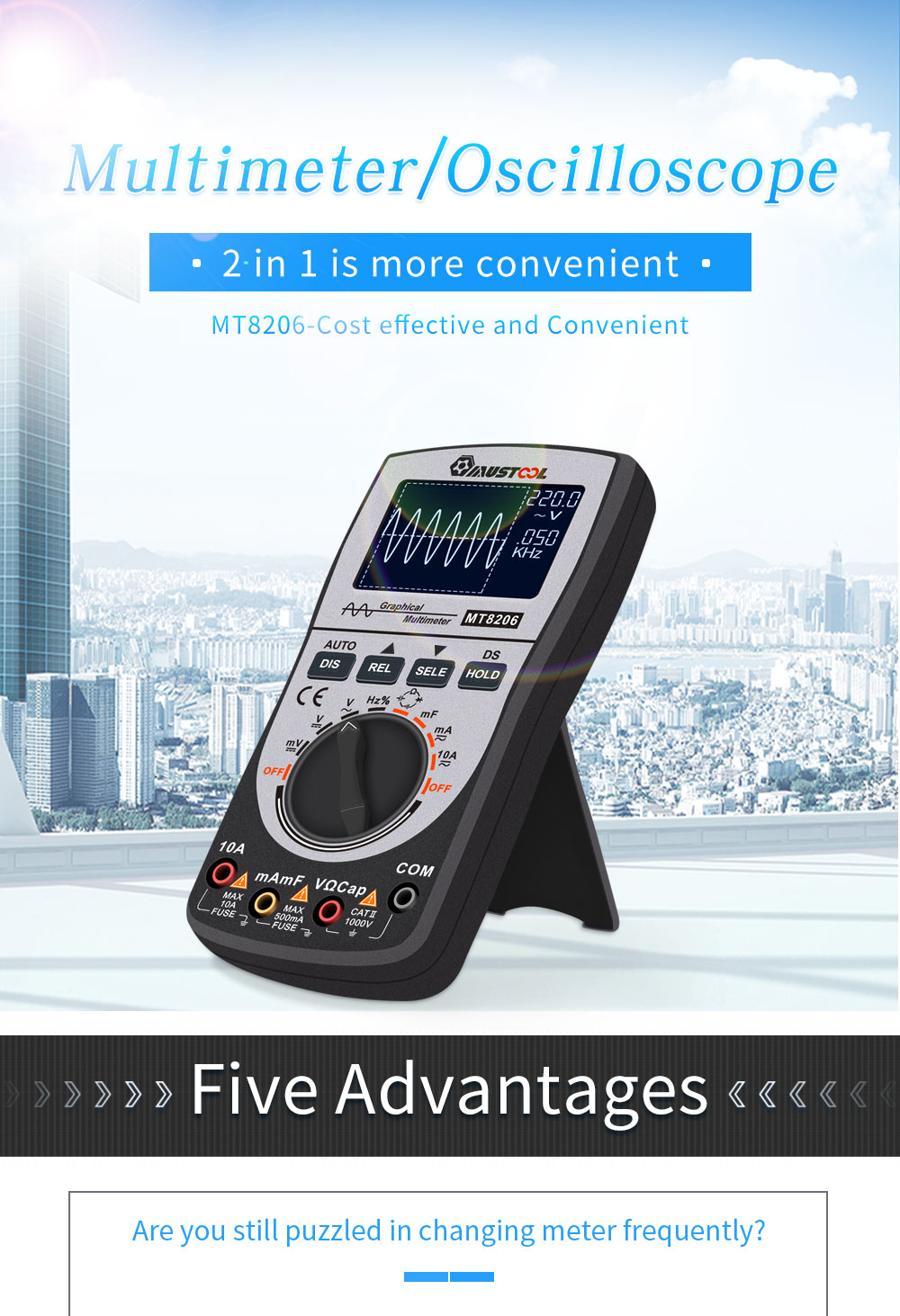

MUSTOOL MT8206 2 in 1 Intelligent Digital Oscilloscope Multimeter with Analog Bar Graph

Technology upgrades:

Waveform signal display within 20KHz + 3999 Counts Display Multimeter, such a amazing instrument!
More improvements , higher performance,  smaller size!

New Technology upgrades(For products shipped after 2018.10.05):

According to the feedback information from our users, the MUSTOOL team has made some upgrades:
1.Silent mode
2.Automatic sleep mode can be selected to open or close
3.ACmV small signal waveform measurement

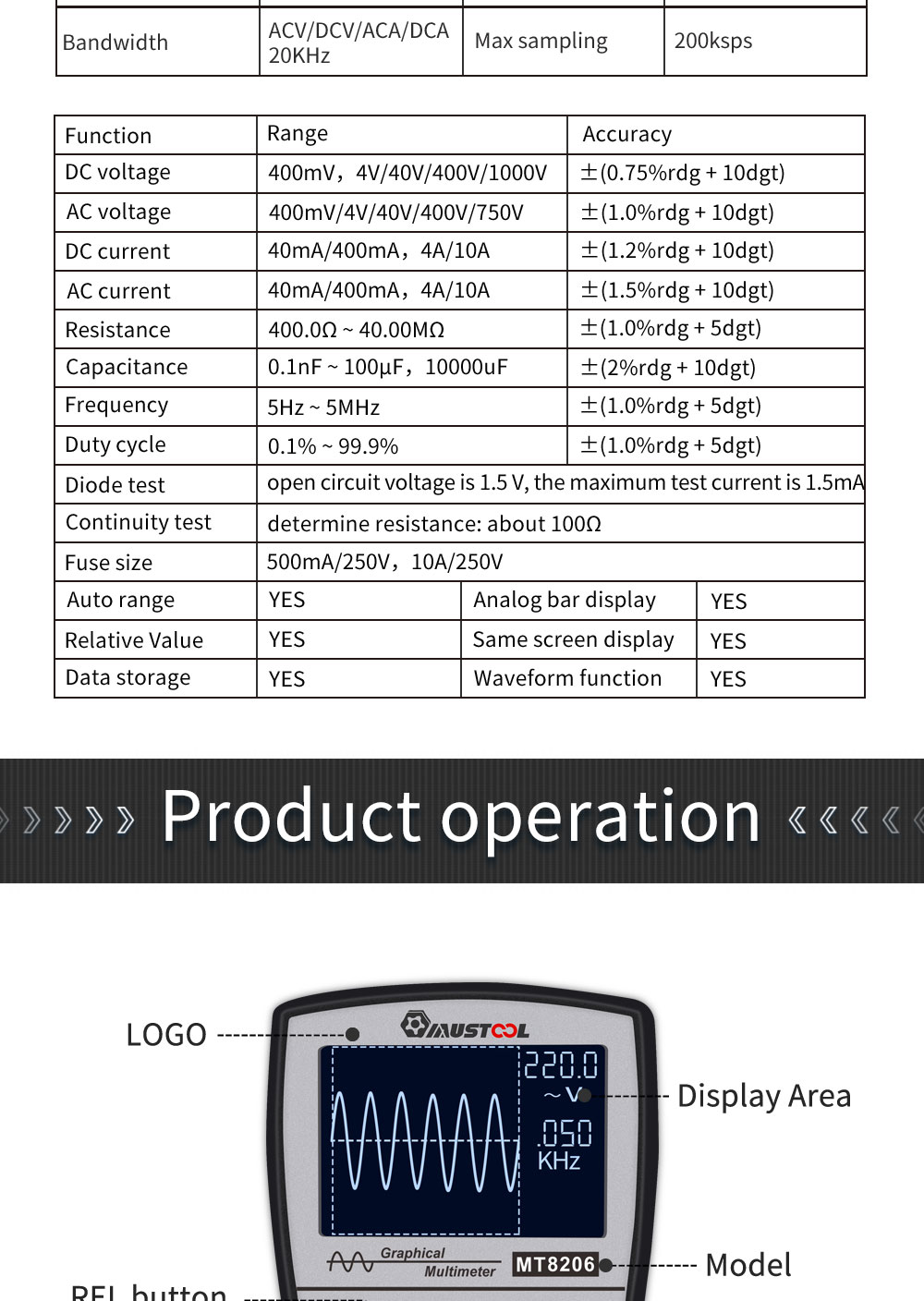

 MT8205MT8206
Max Display1999● 3999
ScreenOrdinary
● HD display Screen; White on black; large view angle
Bandwidth AC 10KHZ● ACA/ACV/DCA/DCV 20KHZ
Measuring RangeManual range● Manual/auto range
Analog Bar GraphNo● Yes
Storage Capacity100 datas,  5 waveforms● 100 datas, 10 waveforms
Capacitance200μF● 0.1μF-100μF/10mF
Frequency2KHZ-200KHZ●5HZ-5MHZ
Resistance20MΩ● 40MΩ

Features:

1.Analog Bandwidth : ACV/DCV/ACA/DCA 20kHz , 200k high-speed A/D sampling
2.HD Display Screen

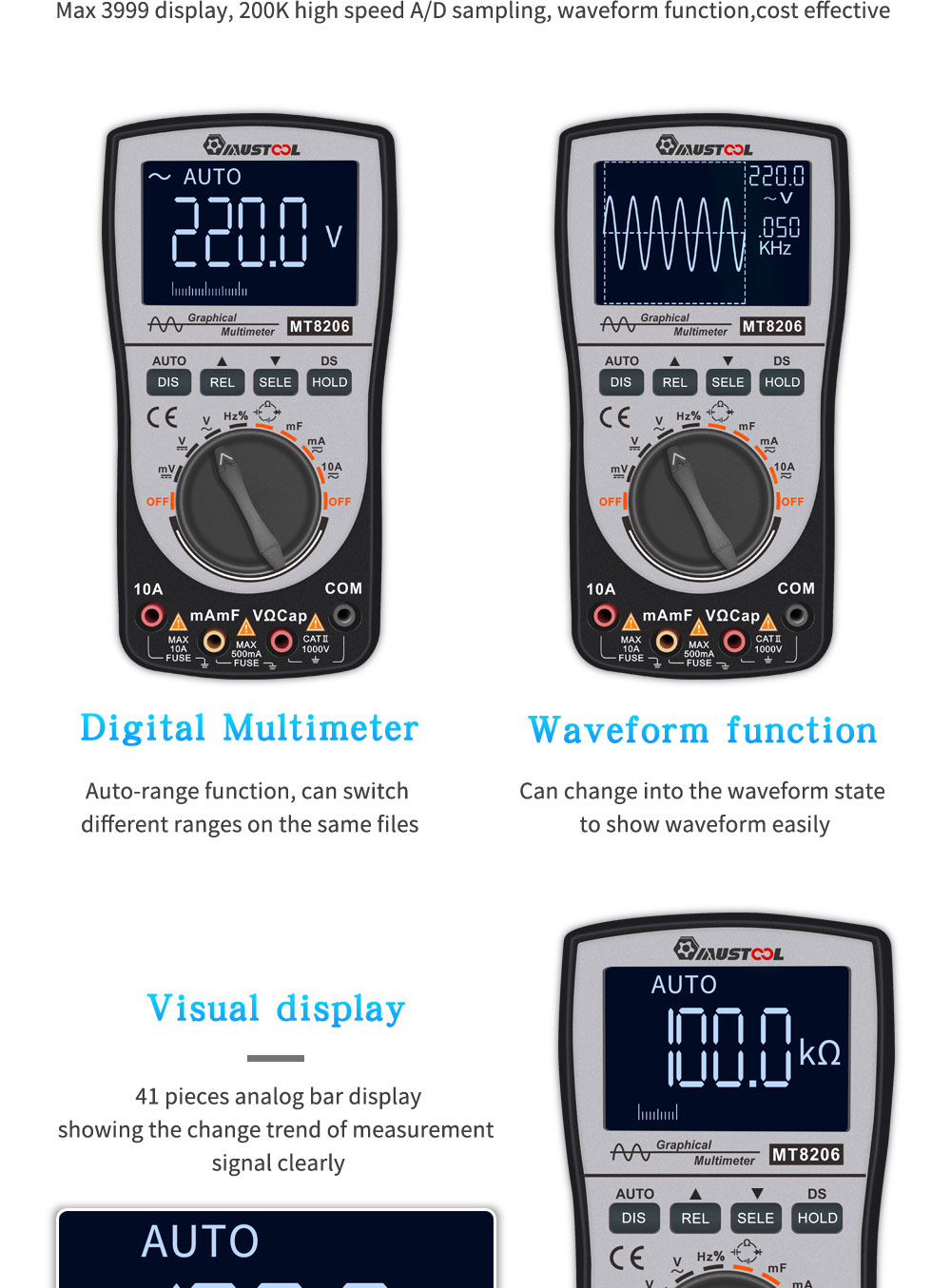

3.Digital multimeter with 41-segment analog bar display,200k high-speed A/D sampling,4000 counts auto-range(can be selected manually), one-button switch of graphical waveform display during measurement

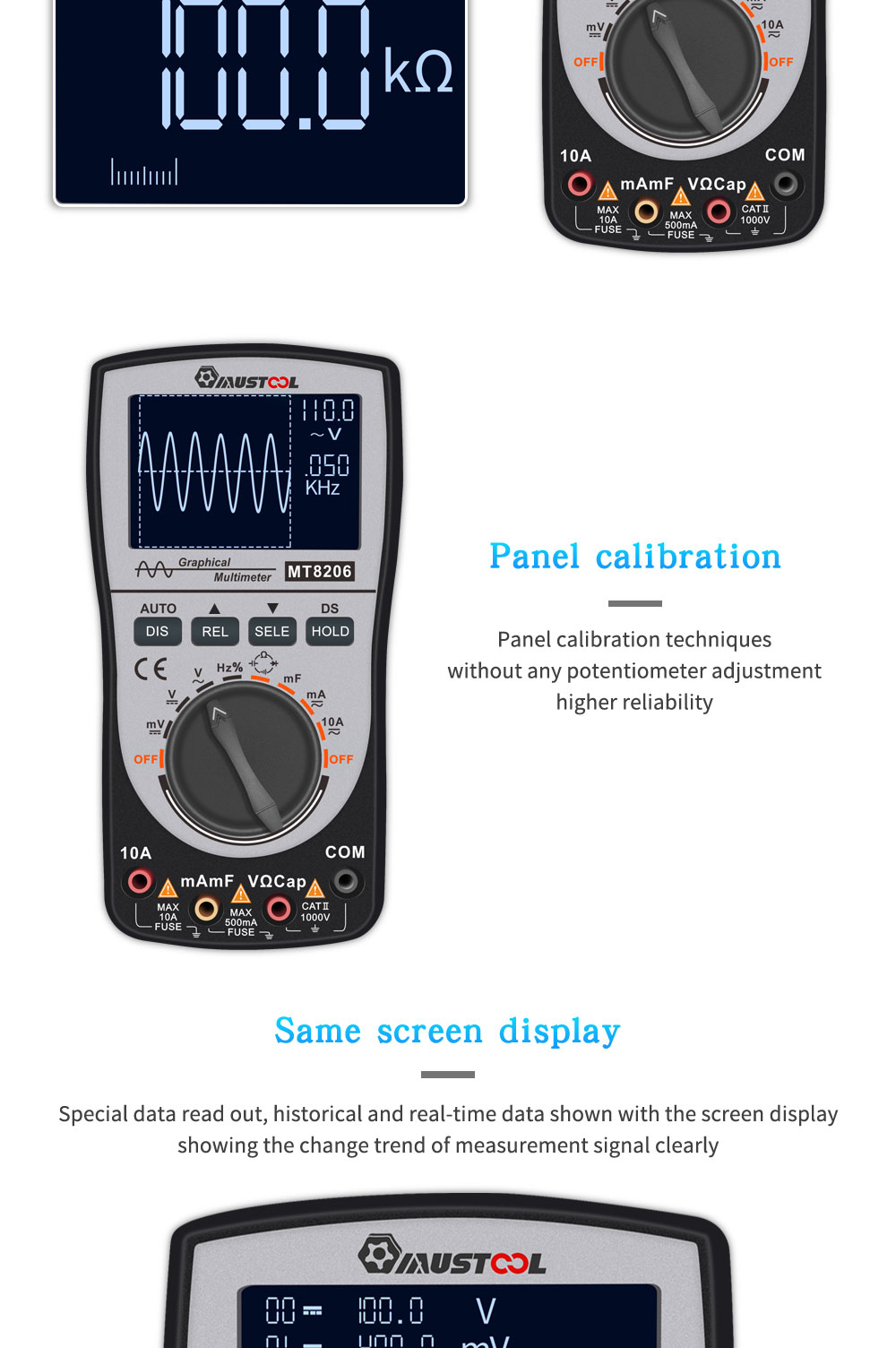

4.High reliability with panel calibration technology and memory calibration, sparing the need for adjustment with potentiometer
5.Storing 100 sets of data and 10 waveforms independently
6.Capable of holding waveform and data during measurement,easy to view and analyze
7.Realizing one-button automatic waveform capture,operator-friendly to learn and operate
8.Displaying historical data and real-time measurement on the same screen with unique record reading mode for easy comparison
9.Effectively eliminating lead resistance, distributed capacitance or interference signals with relative value measurement (clearing)
10.Extending battery life with automatic shutdown function

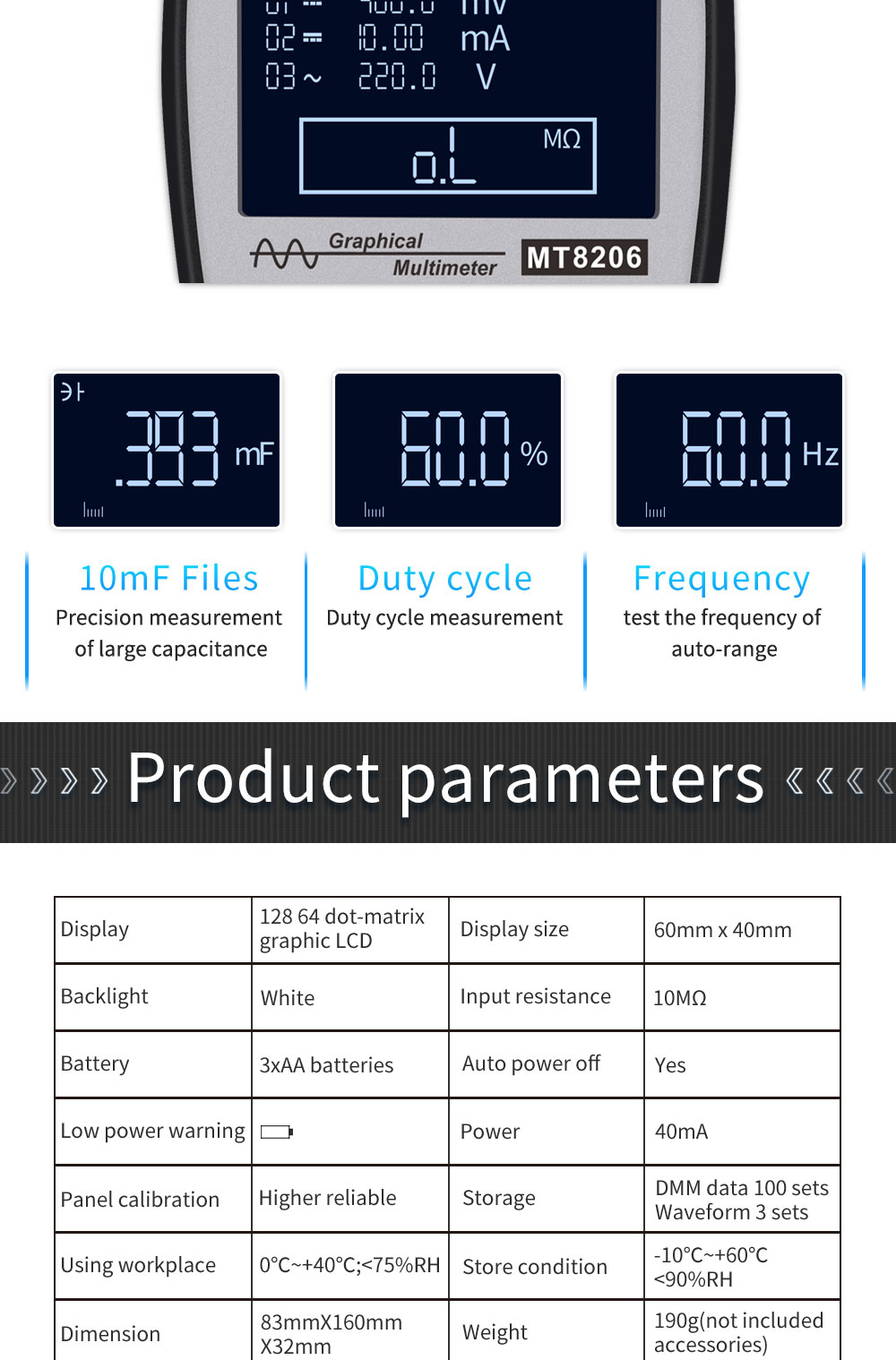

11.Featuring DC/AC voltage/current, resistance,capacitance/mF (large capacitance)
12.Frequency/duty cycle, diode/continuity test
13.Frequency measurement with 5Hz ~ 5MHz automatic switching range and the maximum input of 380VAC
14.10A AC and DC current measurement with protection against voltage error
15.Capacitance double gear design 0.1nf-100uf gear position: convenient for small capacitors to measure quickly
16.10mf gear position: high capacitance and high accuracy are guaranteed

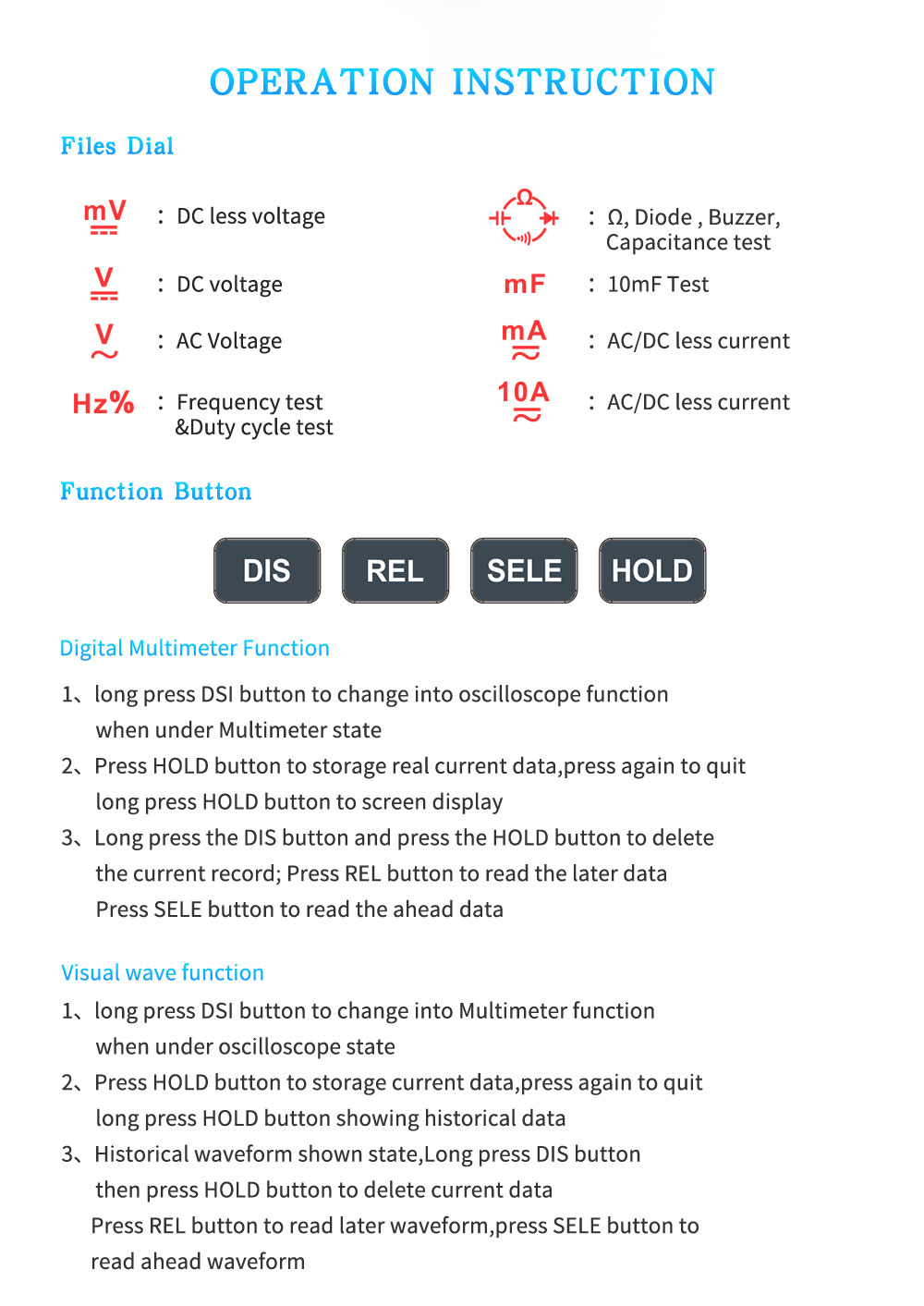

Silent mode:

Innovative design of the one-button "silent mode", quiet in mastery
In the off state, press and hold the SELE button for two seconds  to turn it on to enter the “silent mode”;
In the off state, press and hold the SELE button for two seconds to turn it on  again,it will exit the “silent mode”.
When the meter enters the "silent mode", all beeps and prompt tone will be turned off.

Automatic sleep:

Avoid the instrument sleeping in the background and use the battery to cause over-discharge of the battery.
The meter without operation for 15 minutes (no rotary switch and button operation) will automatically enter the sleep state;
Turn the rotary switch to OFF and then turn it on again, the meter will enter to normal measurement state.
When the Instrument is in the off state, press and hold the AUTO button for two seconds to turn it on again , then the “auto sleep” function can be cancelled.
In the off state, press and hold the AUTO button  for two seconds to turn it on and then release it to resume “auto sleep”. features.
Tips • The main chip and the power of screen display are only turned off when the meter is automatically turned off, but there is still a part of the circuit working, which will have an operating current of about 4 mA.

ACmV small signal waveform measurement:

ACmV small signal waveform measurement, you need to manually select the ACmv range first, then long press the "SELE" button to enter waveforms display.
Press the“AUTO” button to realize one-button automatic capture fuction and display a stable waveform.
When the frequency more than 10 kHz, the one-button automatic capture time will be longer.


New Arrival Recommendation

                                            TOOLTOP ET336 600V True RMS Digital Clamp Meter with 1KHz ACV/ACA Waveform Display Multimeter Oscilloscope 2 in 1


                           id: 1597324


Package Included:

1 x MT8206 Unit
1 x Bag
1 x Pair of Probes
1 x English User Manual
1 x Package Box


Detail Pictures:
